8x5 Carpenter's Tool Trailer - Grey

SKU: TT85GV1

Original price was: $25,990.00.Current price is: $23,990.00. Inc GST

(Delivery fees and handling charges may apply to particular models when picking up from NSW, SA, WA and TAS)

Total: Original price was: $25,990.00.Current price is: $23,990.00. Inc GST
SKU: TT85GV1 Categories: , Tag:
Need finance or layby option?

*Terms & conditions apply.

Enquire about this model

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Videos

About the 8x5 Carpenter's Tool Trailer - Grey

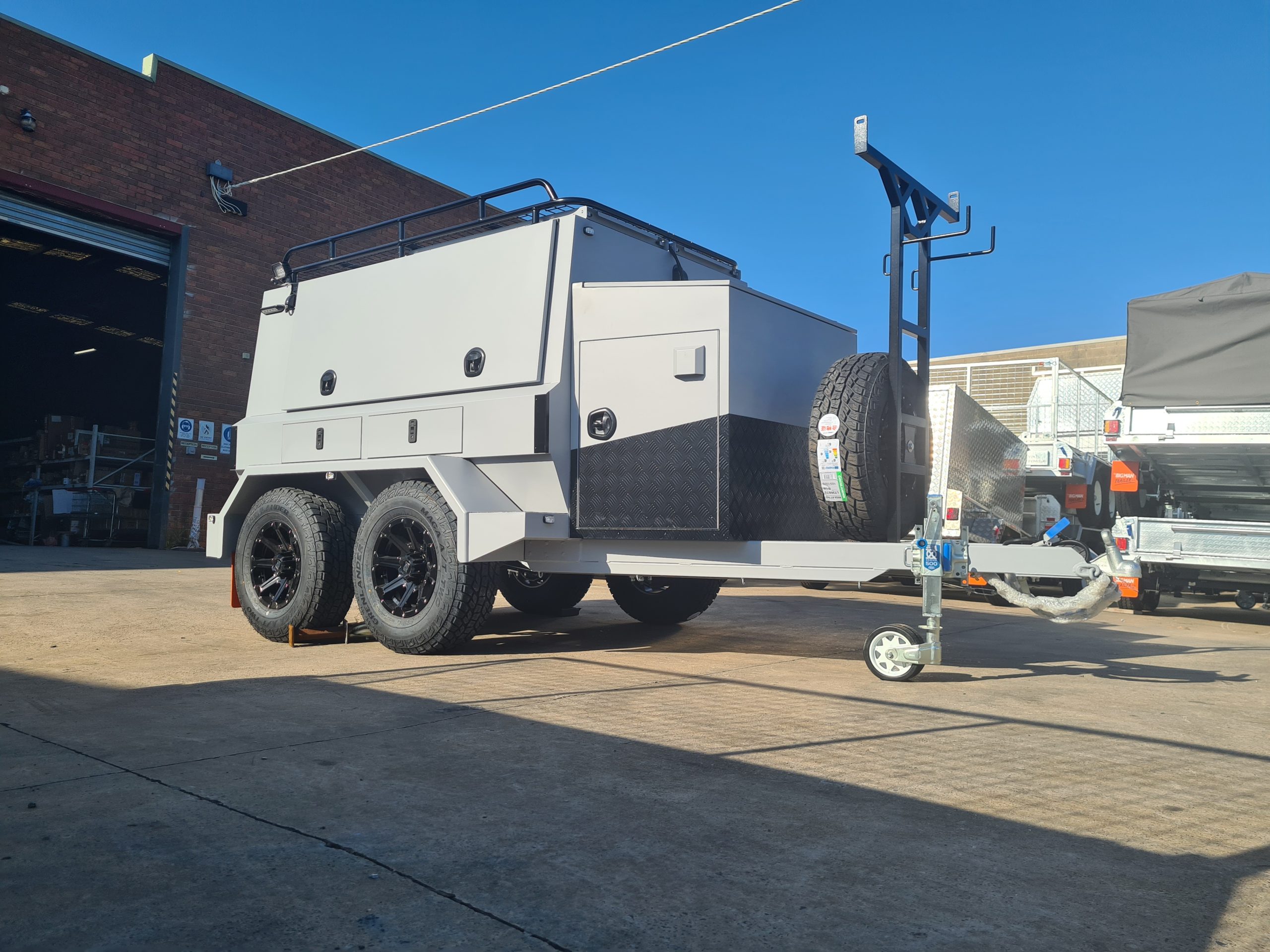

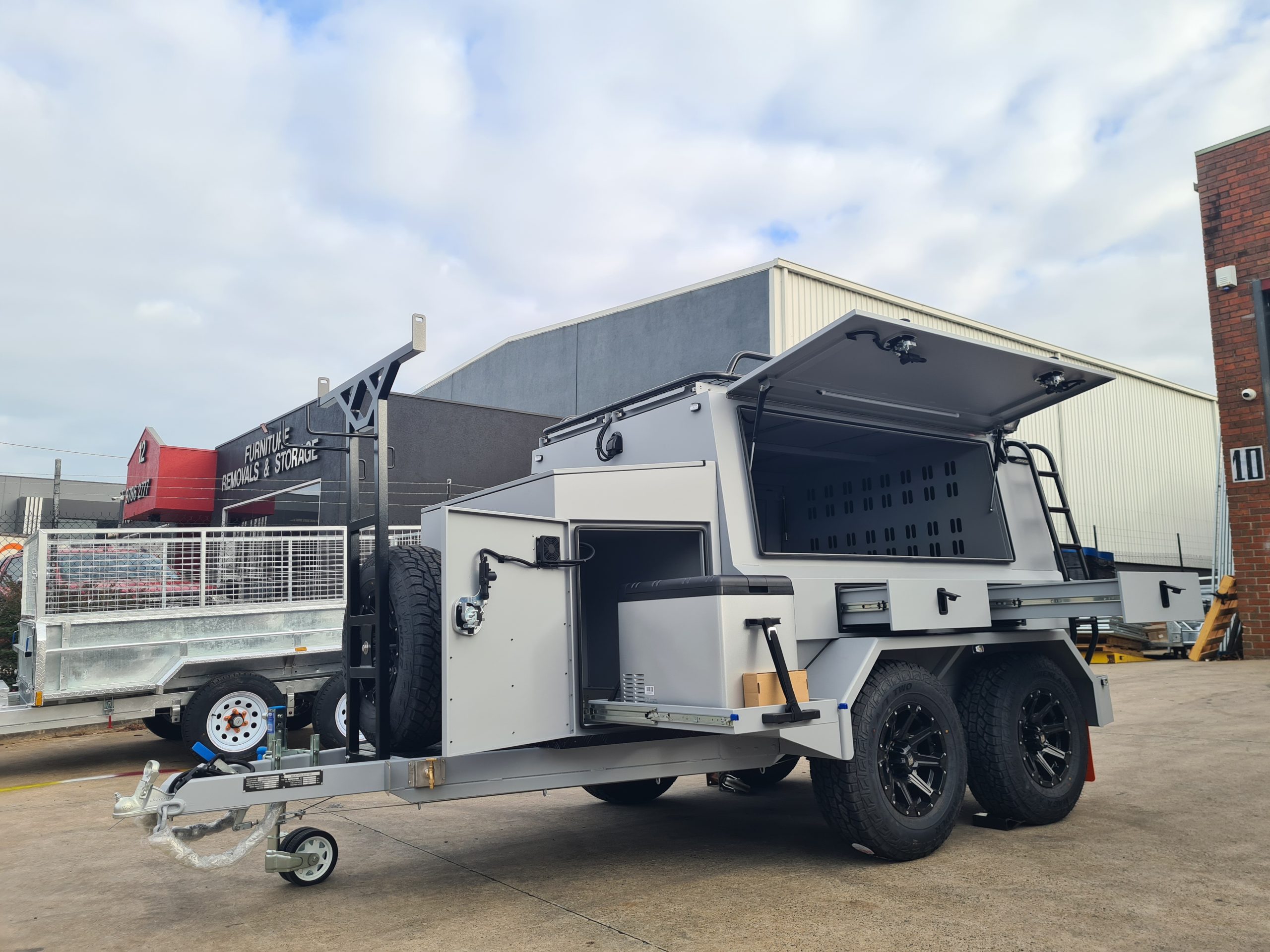

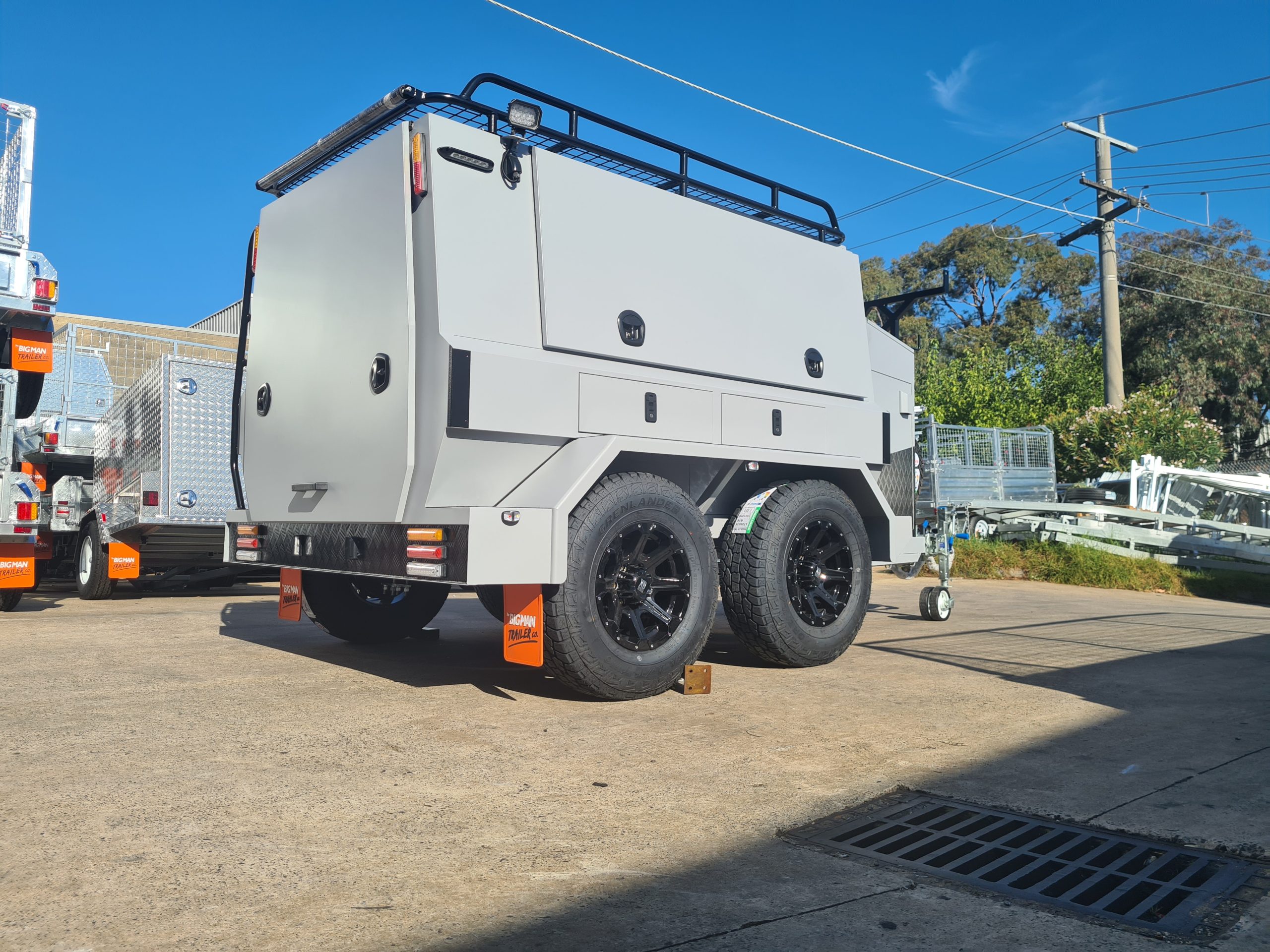

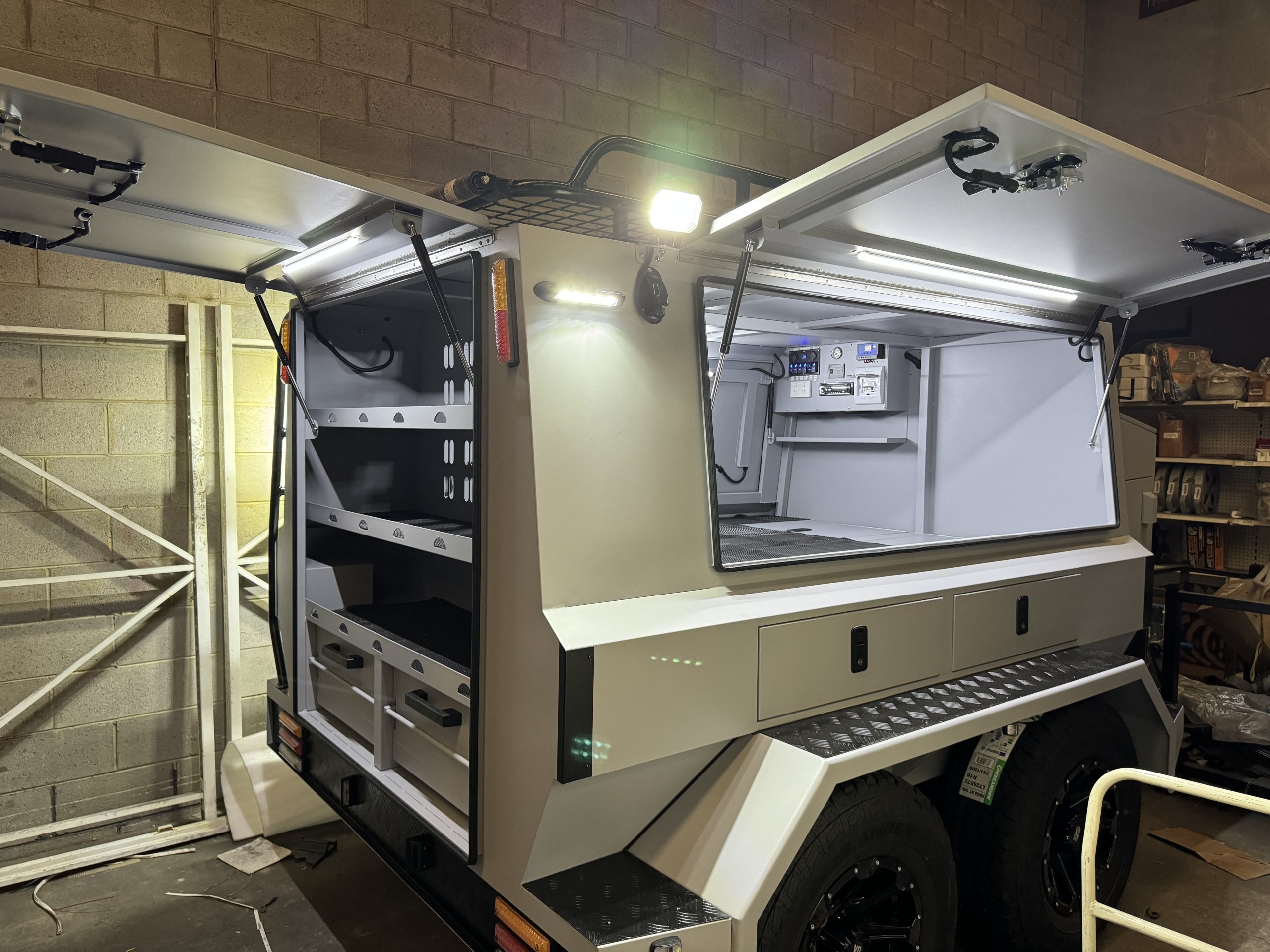

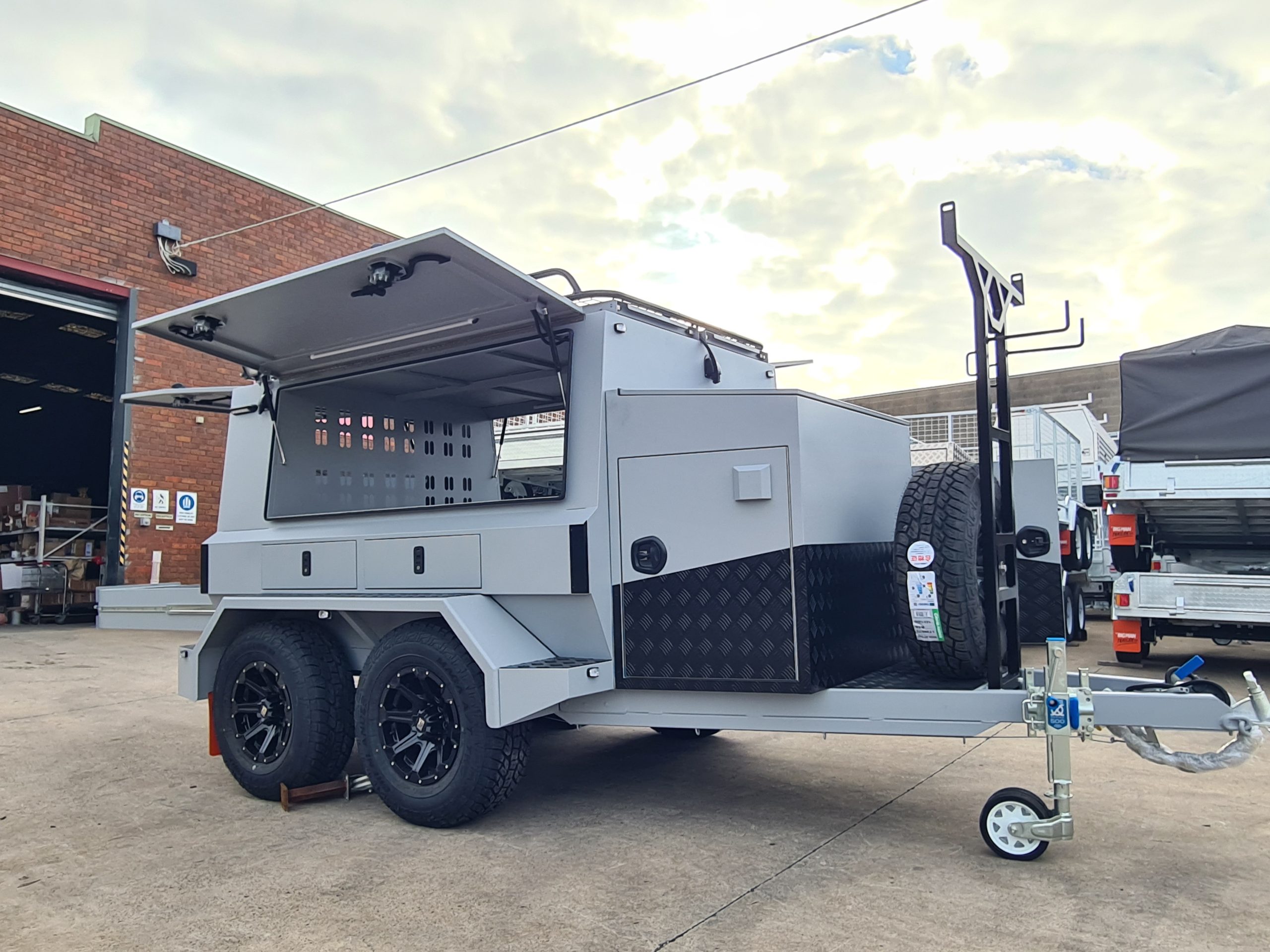

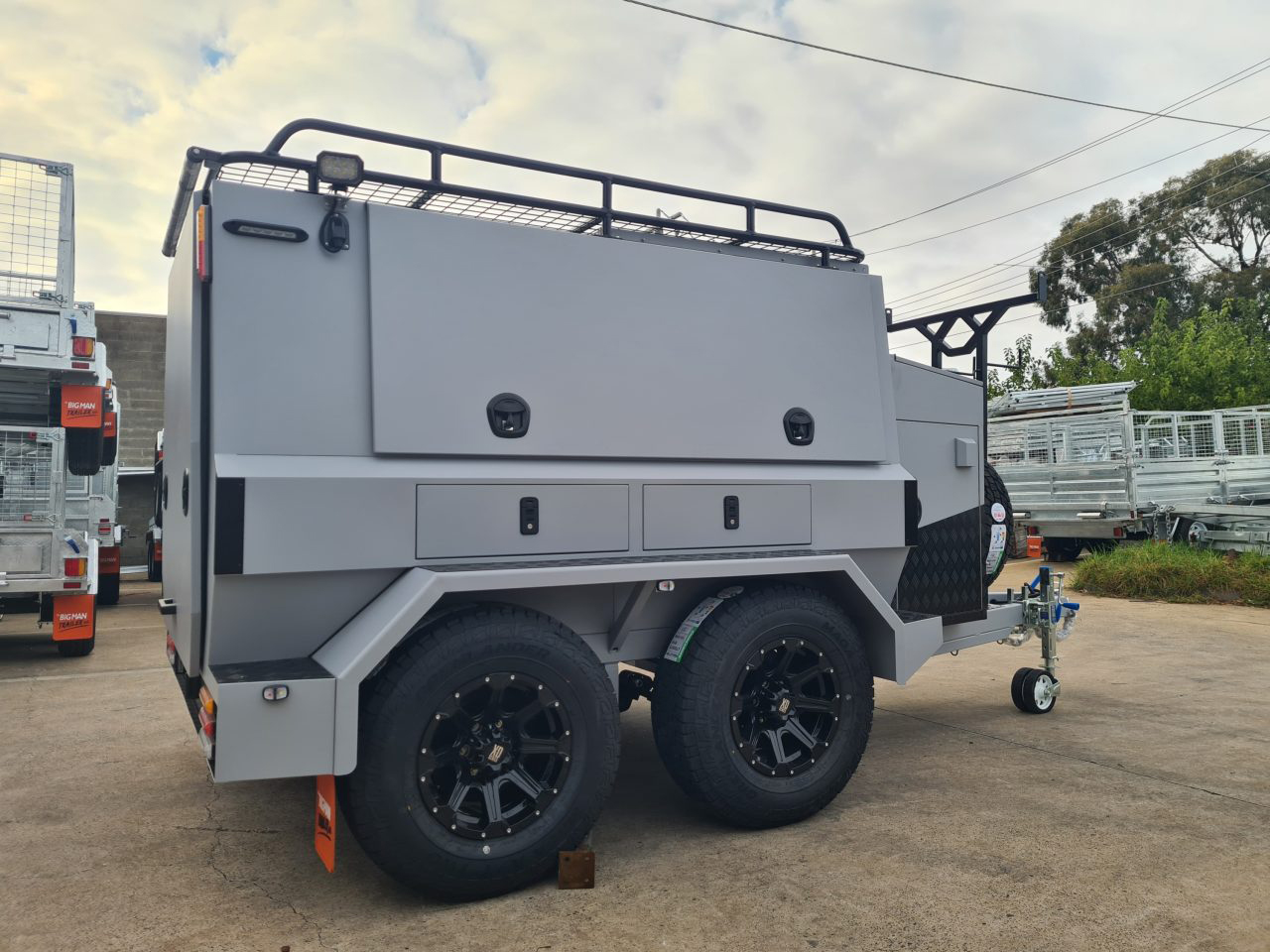

The 8x5 Carpenter's Tool Trailer (Model TT85GV1) in grey is a heavy-duty dual-axle tradesman trailer designed for durability, functionality, and convenience. It features spacious main compartments on both sides, additional storage underneath, a fridge slide-out with overhead compartments, rear shelving, and secure slide-out drawers, all fitted with latches.

Built tough with a tare weight of 1650kg and an aggregate trailer mass of 3500kg, it is equipped with 265/75R16 tyres, an 1800mm drawbar, and double king tyres with Off-Rise Series GR wheels. The trailer also includes dual batteries, Anderson plugs, external sockets, a water gauge, and dual 70L water tanks, offering power and water supply on the go.

Additional features include a grey powder-coated roof luggage carrier, a grey ladder rack with a spare tyre, solar panel slide-outs, a Central Locking System for added security, and gas struts on all doors for easy access. With rocker roller 9-leaf suspension and grey checker plate finishes on step-on areas, this trailer is built to perform while offering a sleek, professional look, making it the perfect companion for any work site.

Tool TrailerTool Trailer
Tool TrailerTool Trailer

Body Specs & Features

  • Model TT85GV1
  • Overall length 4800 x 2100(W) x 2190 (H)
  • Tare 1650KG
  • Aggregate Trailer mass 3500KG
  • Tyre Size 265 75R16 Inch
  • Cold Inflation Pressure 275kPa
  • Axle Group Loading 3500KG
  • Matt Gray External
  • Matt Gray Internal
  • Drawbar 1800mm long 50 x 100
  • Free upgrade ARK XO500 Jockey wheel

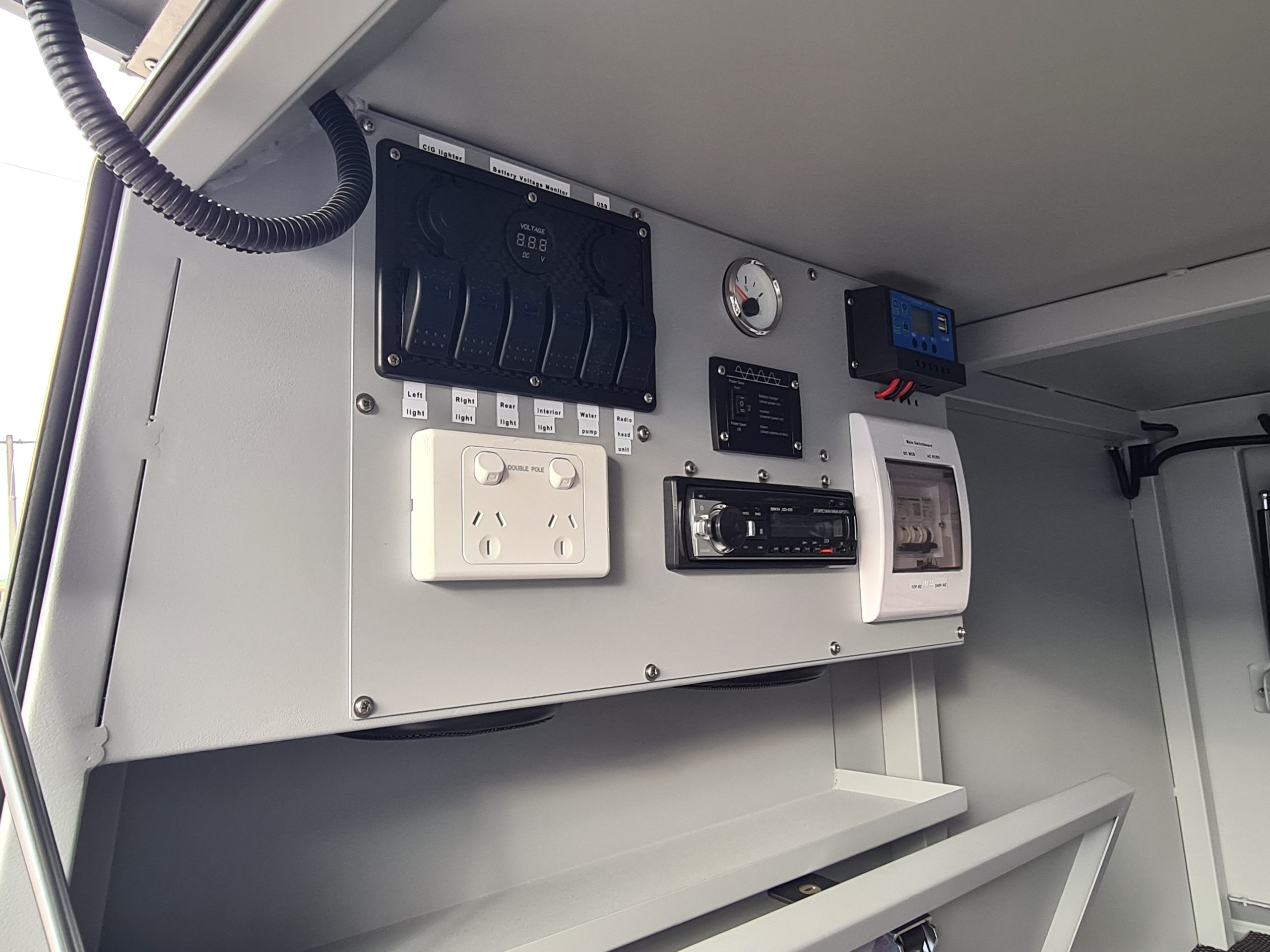

  • Power outlets, 2 speaker radios

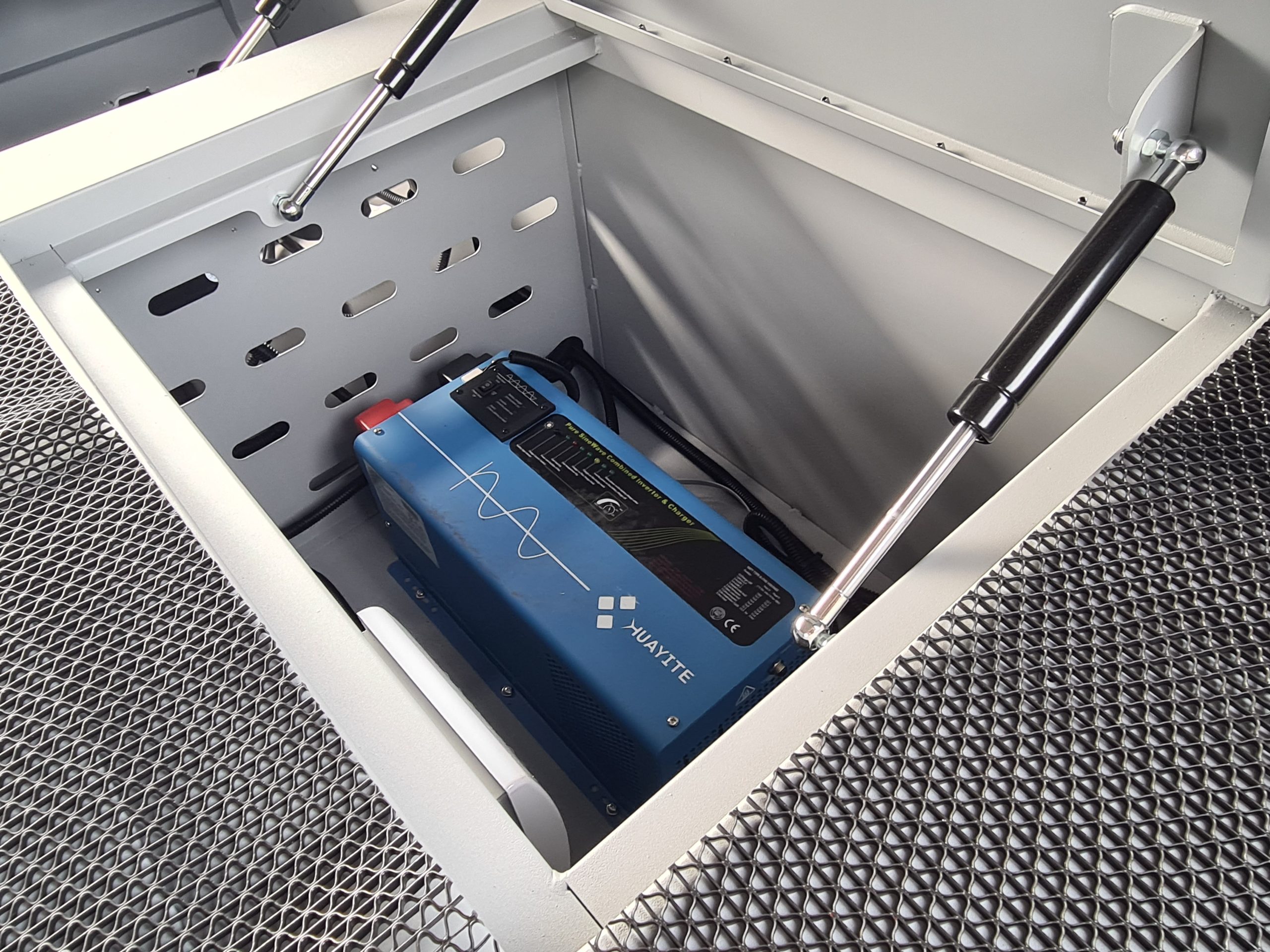

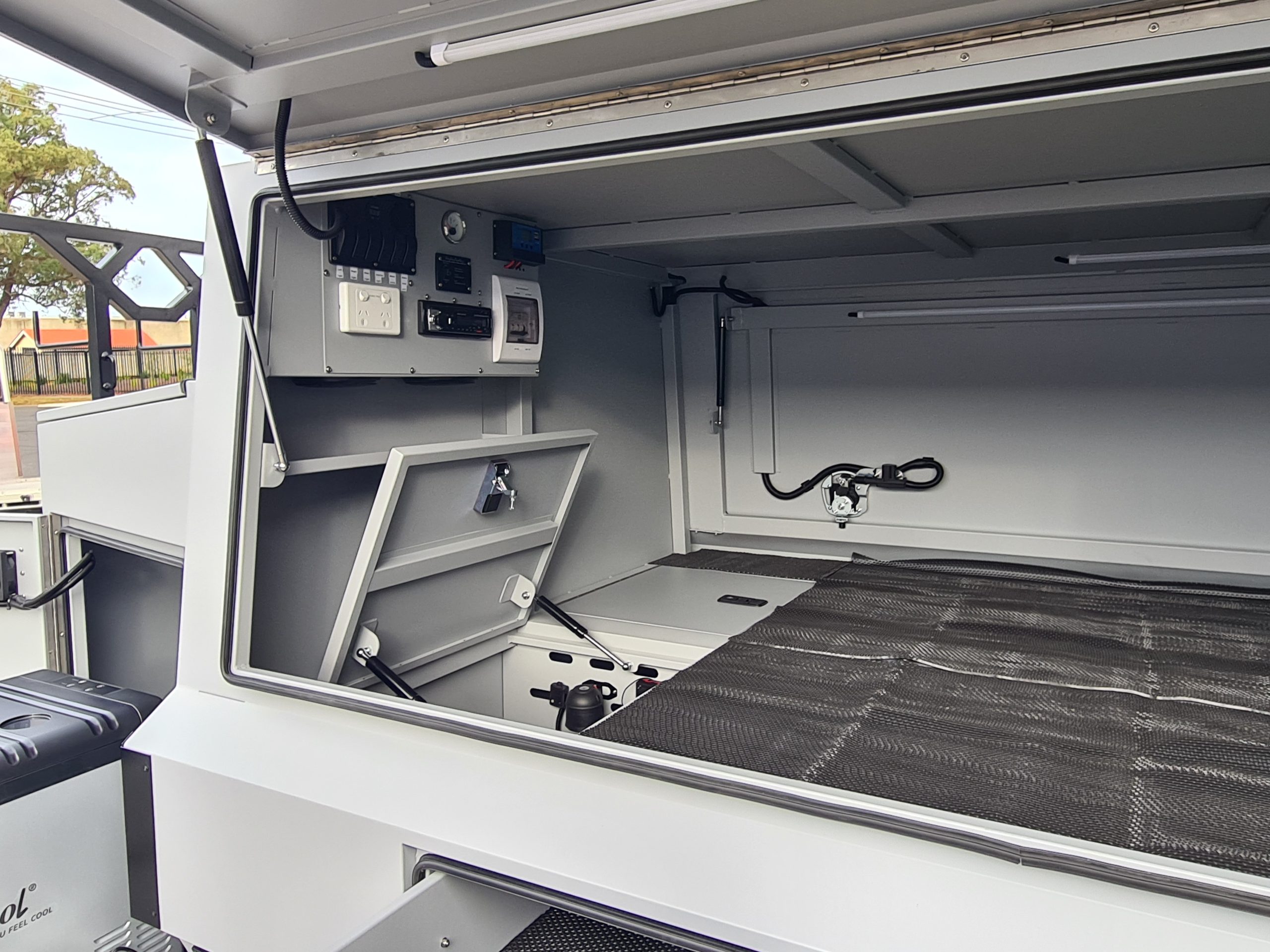

  • 2000W Inverter found within the main compartment.

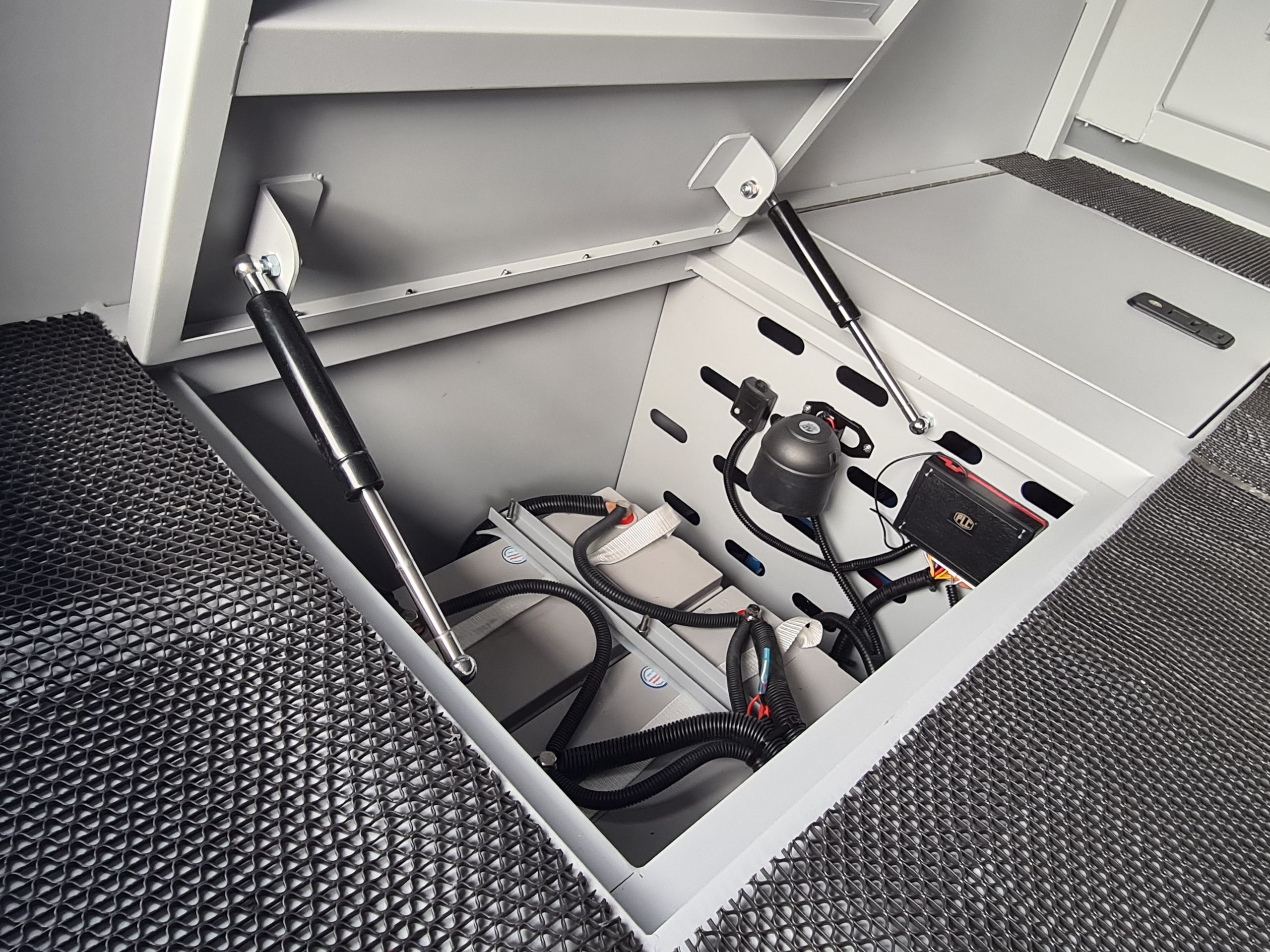

  • 2x135Ah AGM Deep Cycle Battery

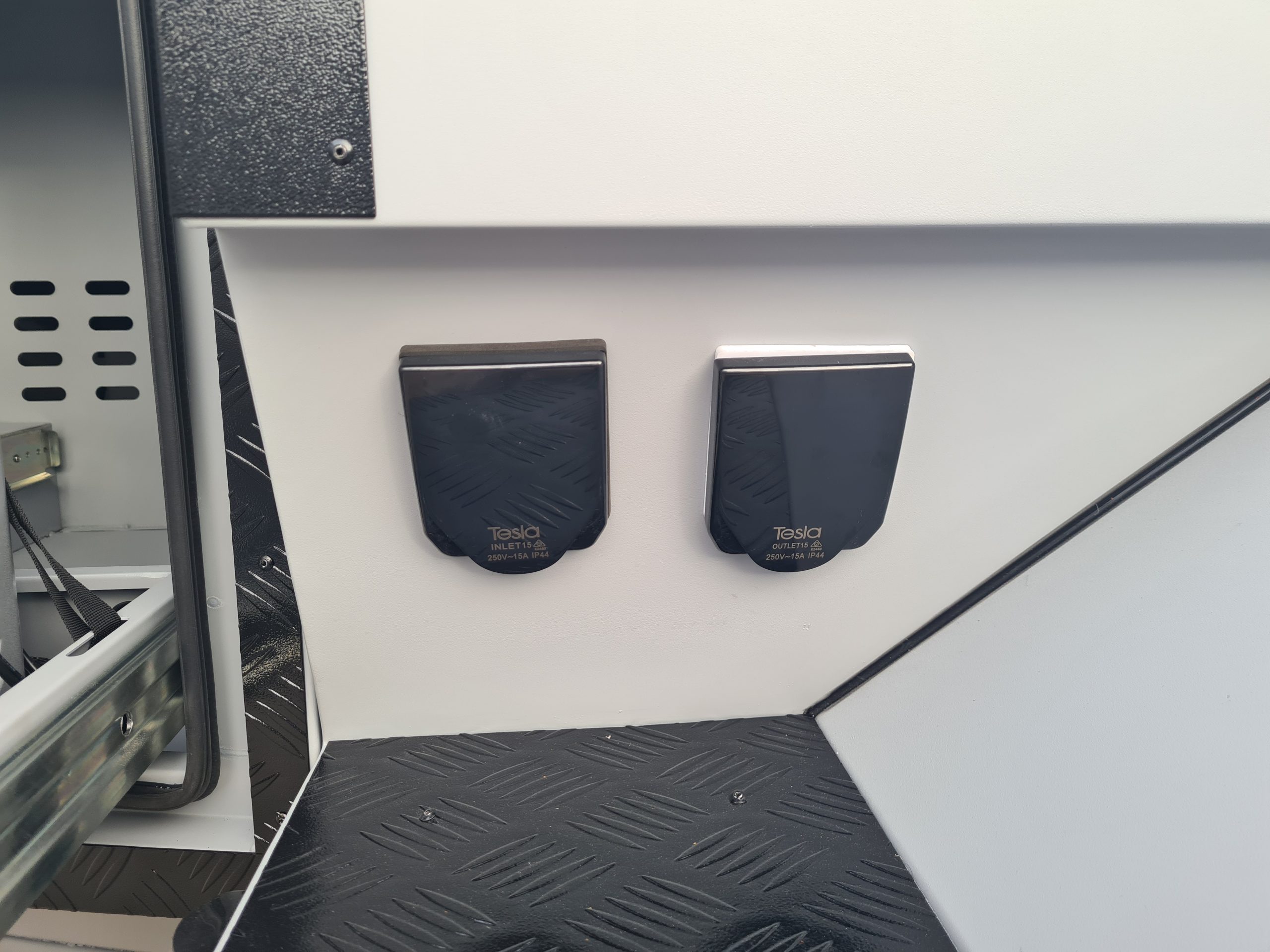

  • Anderson plugs, external sockets, power button in fridge compartment.
  • Water gauge indicating levels found within the compartment.
  • Water hoses run inside the chassis and sits on the left-hand side.
  • 70L Dual water tank found underneath.

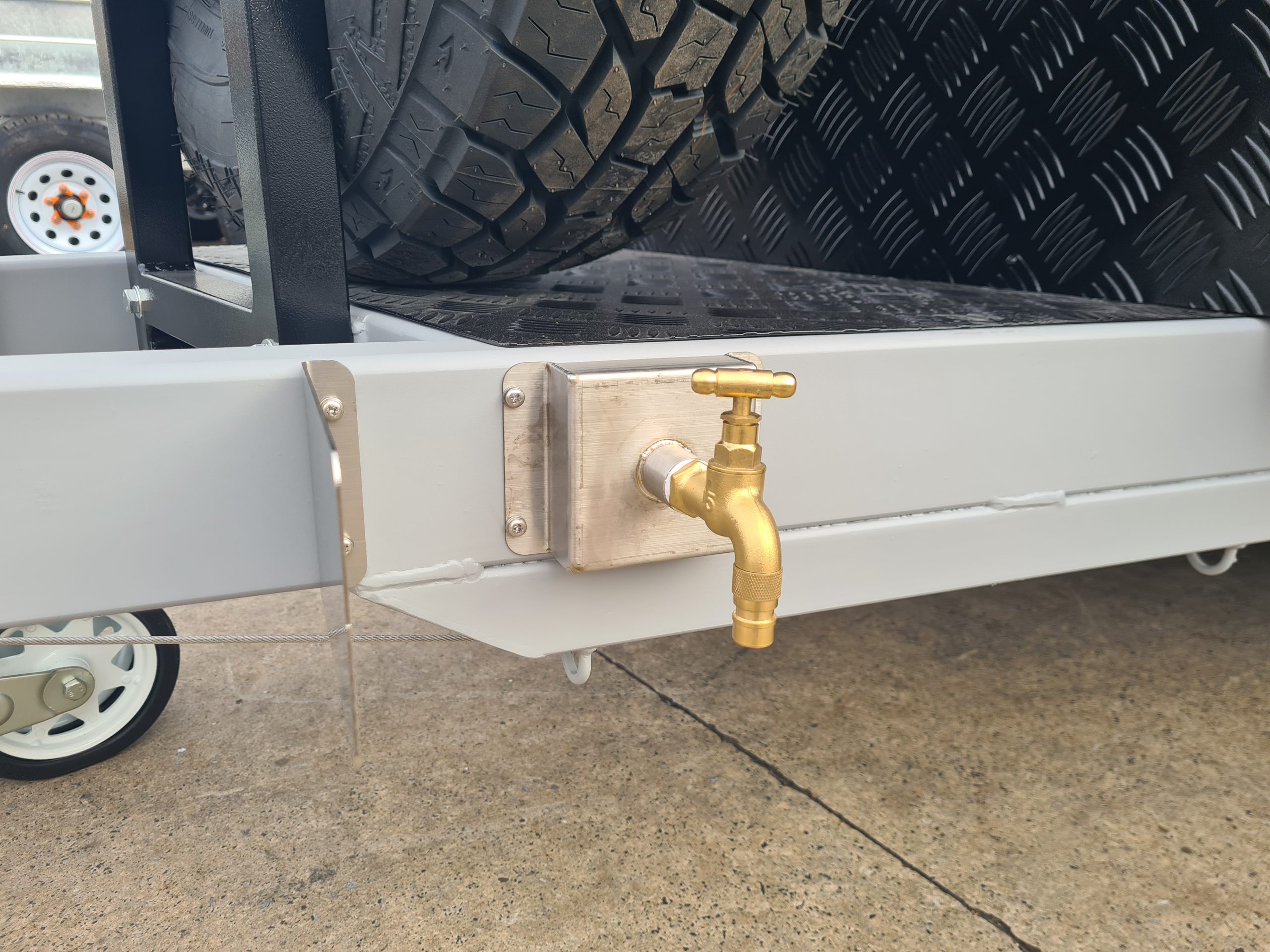

  • Hose runs inside the chassis where you can open the tap.
  • Water pump fitted.

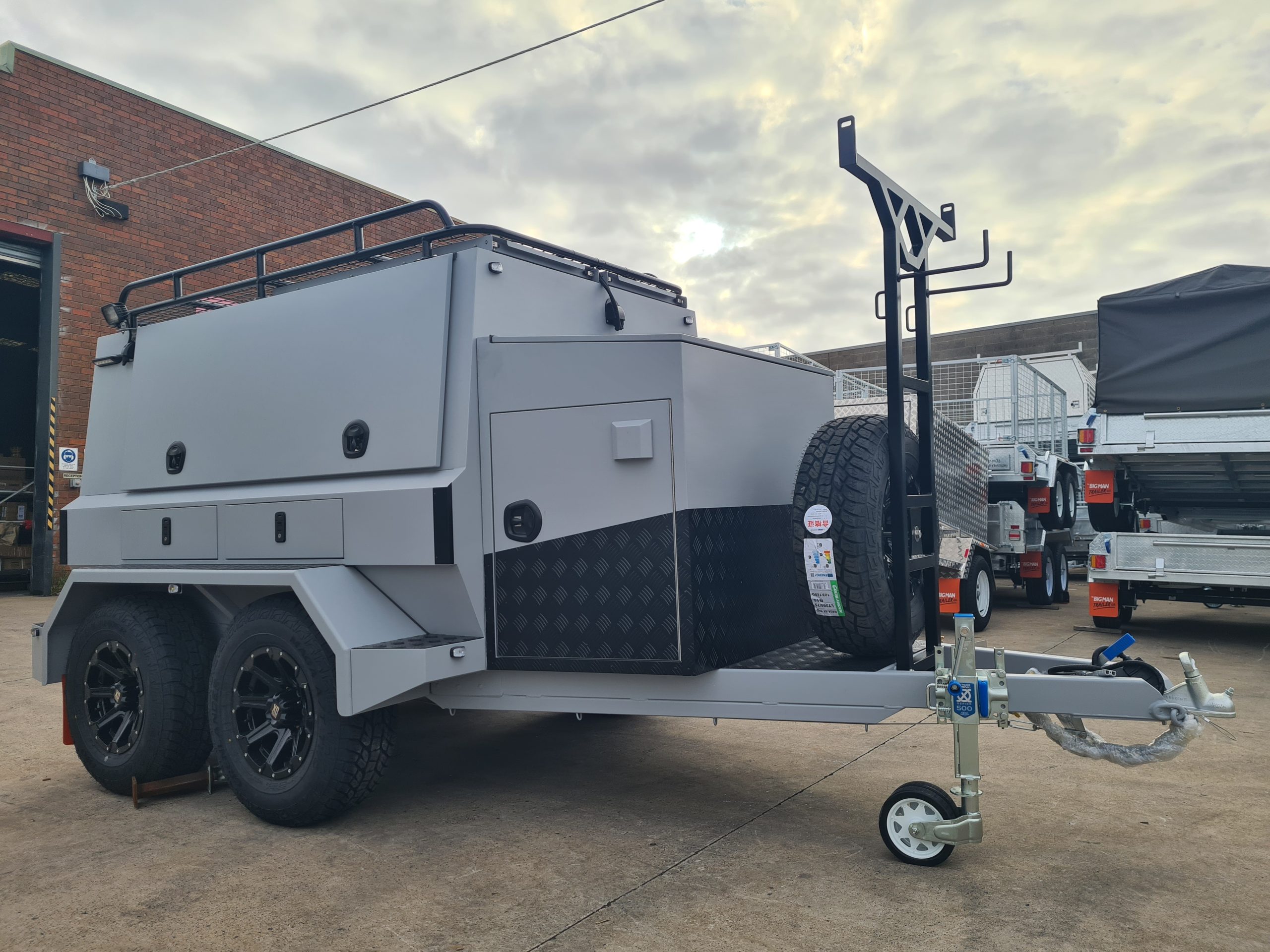

  • Gray ladder rack located at the front with a spare tyre.
  • 2 x Solar panel slide-outs located underneath the roof cage.
  • Fridge slide-out with Fan.
  • Compression press-release locks and *Central Locking system used.
  • Gas struts for all doors.
  • Gray checker plate finish for all step-on areas.
  • Double king tyres and Off-rise series GR wheels.

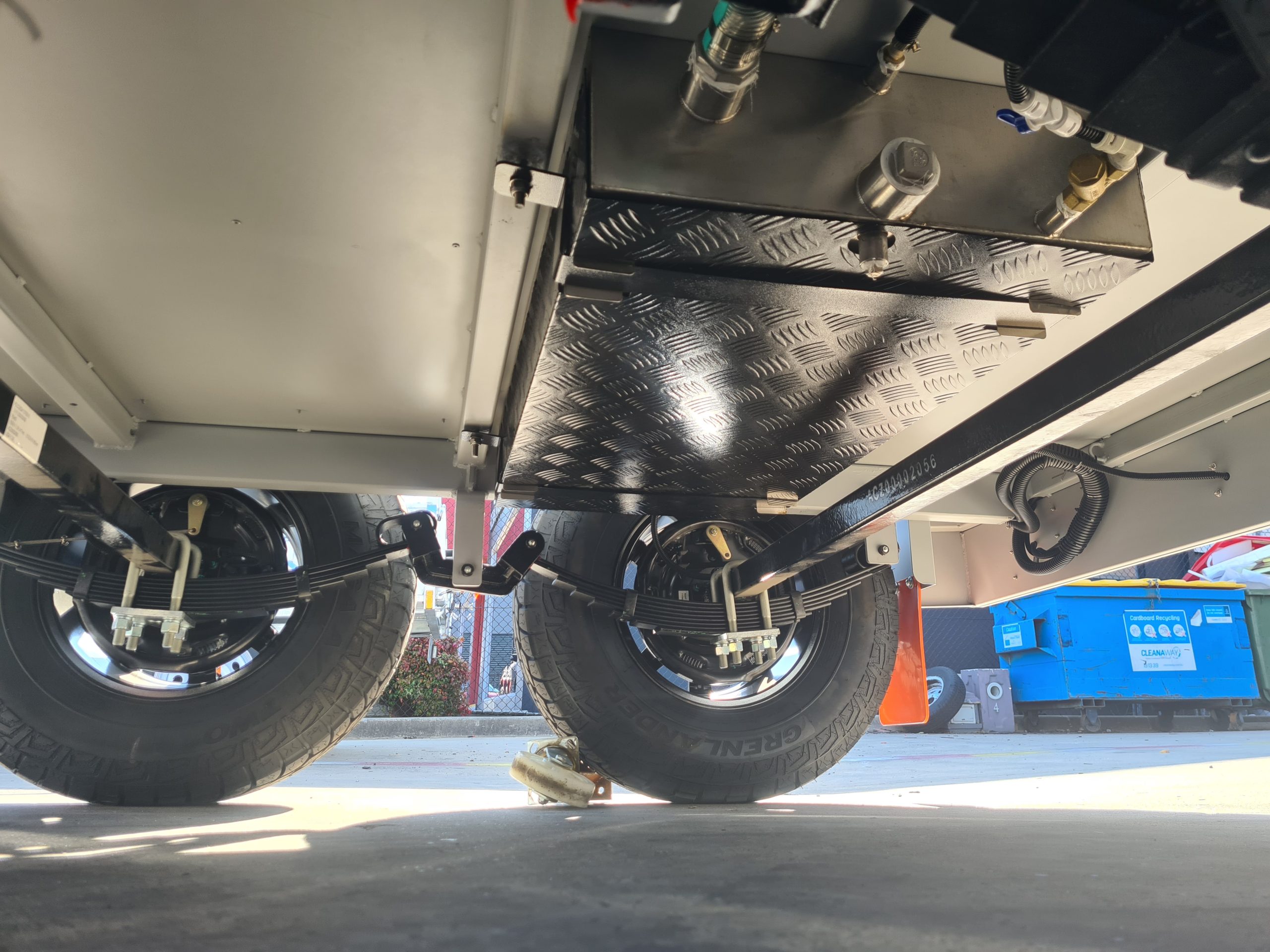

  • Rocker roller 9 leafs suspension

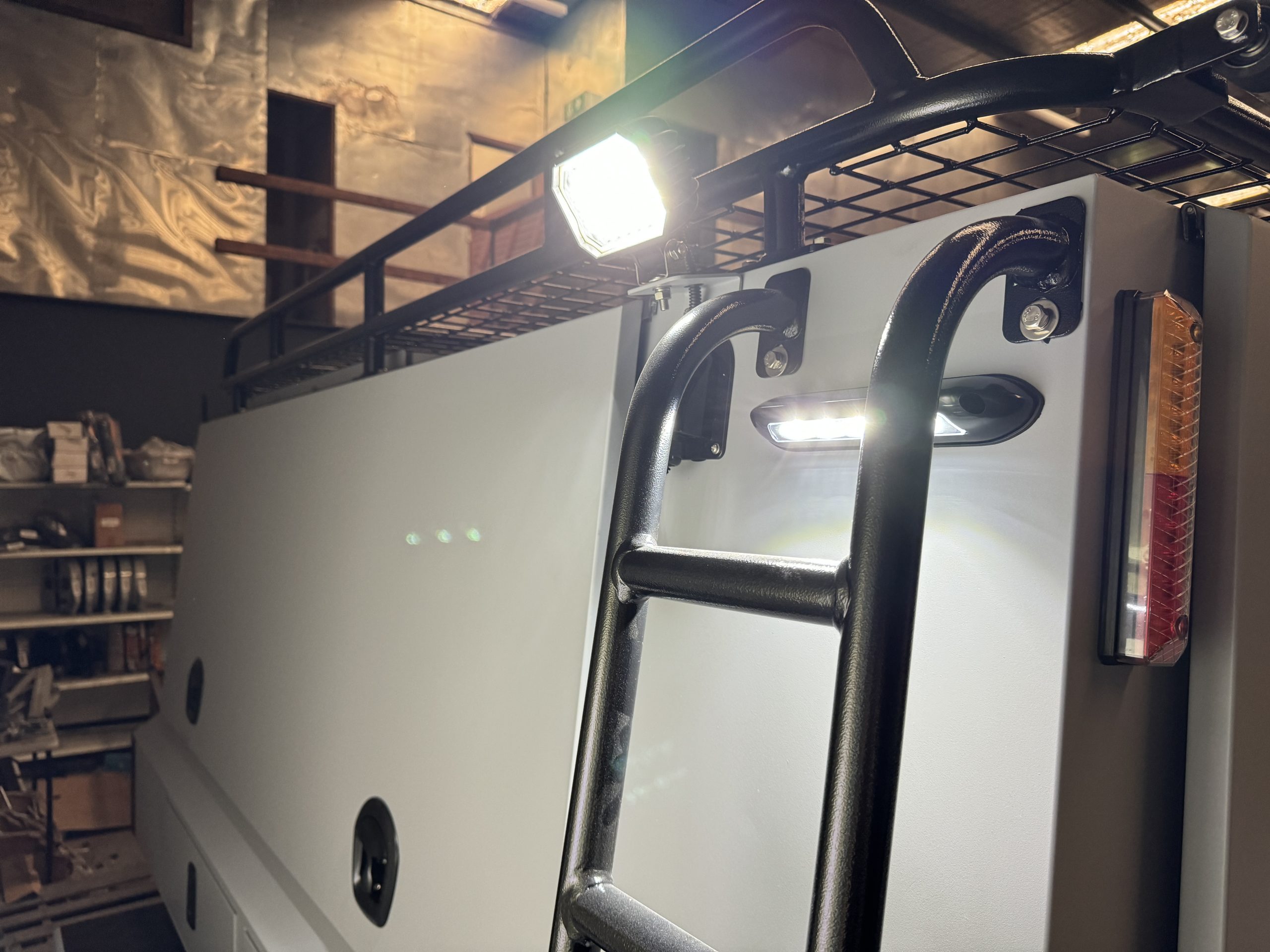

  • Ladder rack located at rear, 1300 height.
  • Roof Luggage Carrier powder coated Gray Included.
  • Brake, parker, reverse, and number plate lights with a gray checker plate finish.

Trailer Finance Options Available!

Tool Trailer

Storage Features

  • 2x smaller compartments underneath the main compartment area on left (450w x 450L x 450H).

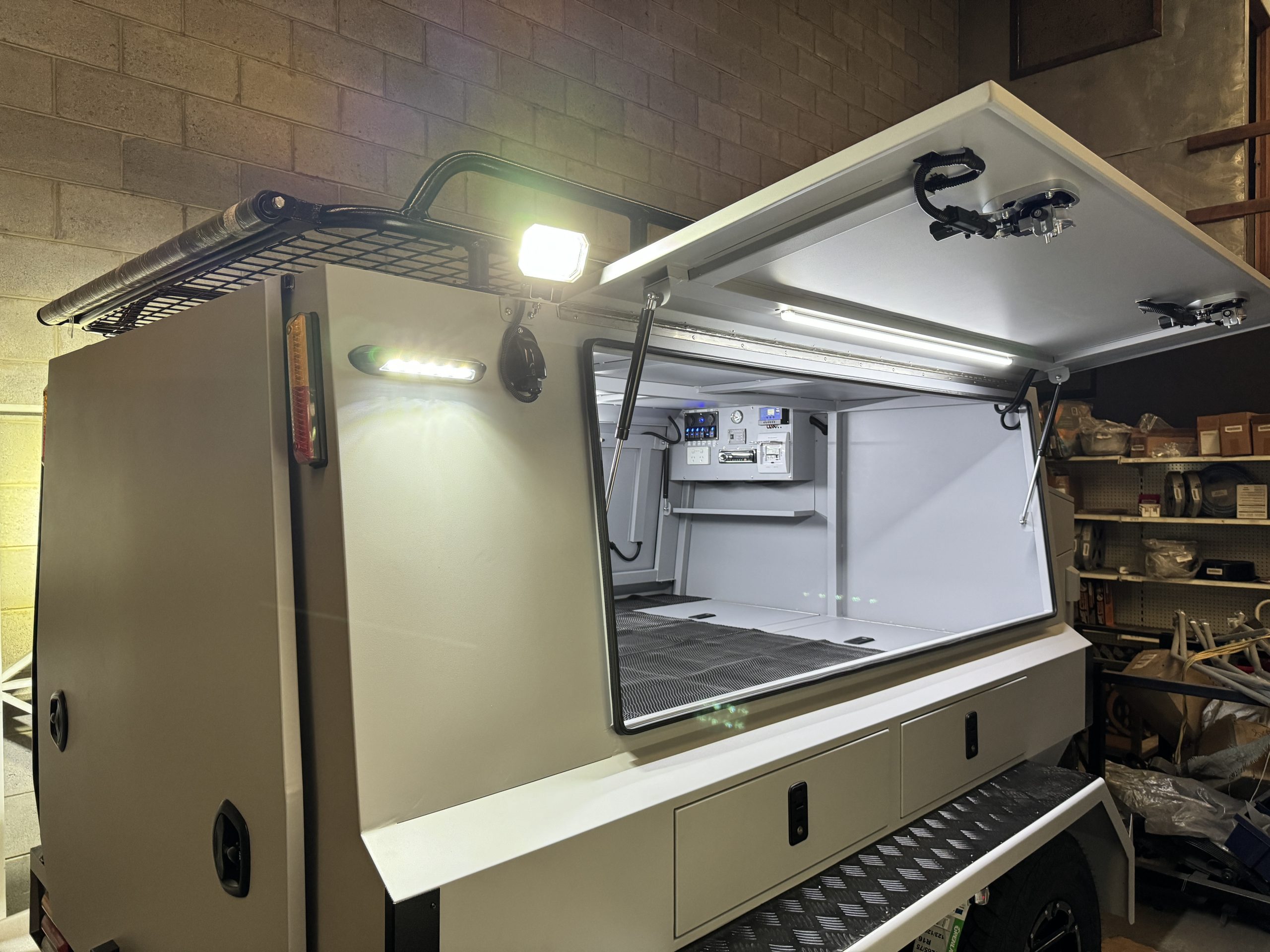

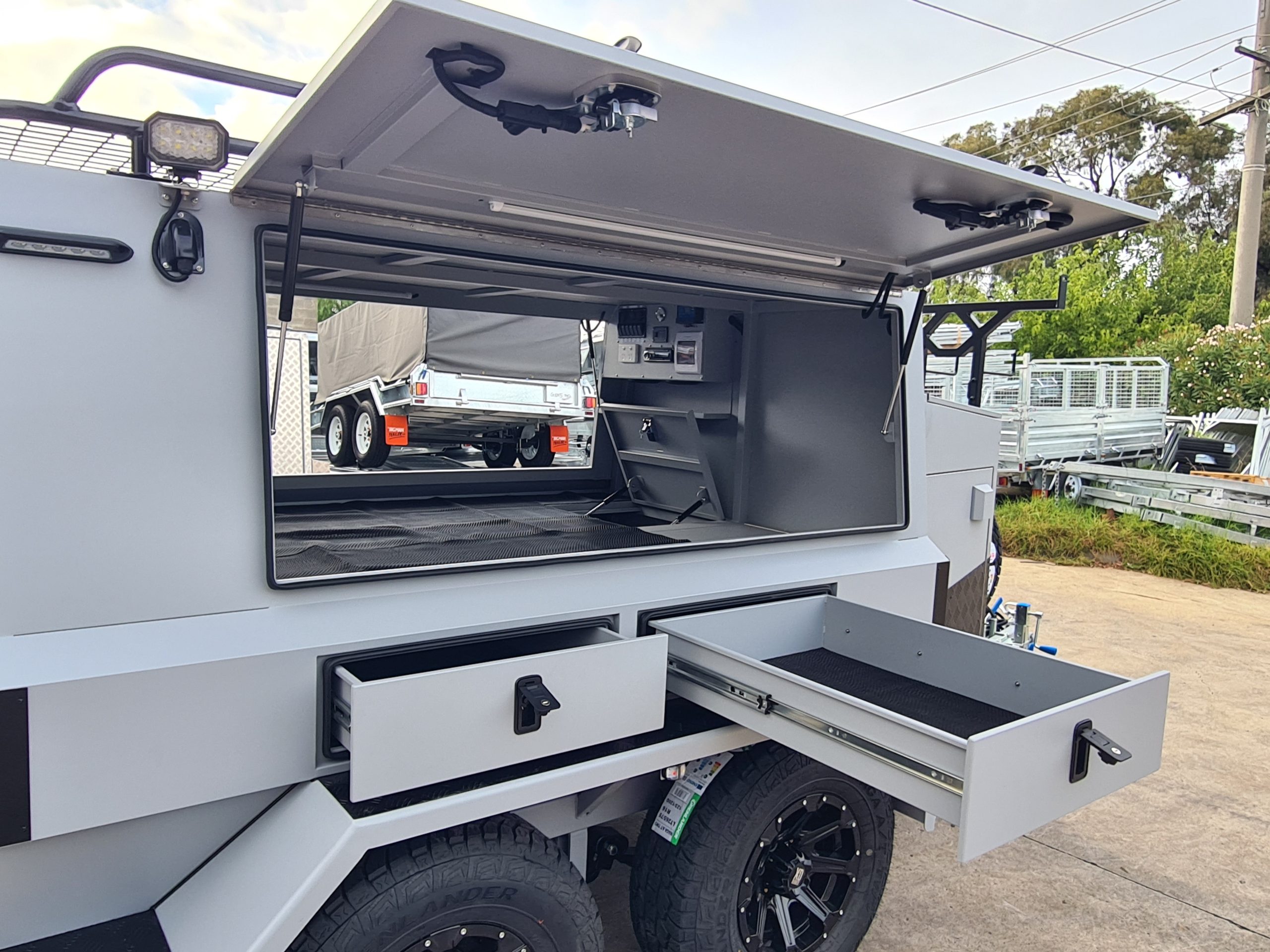

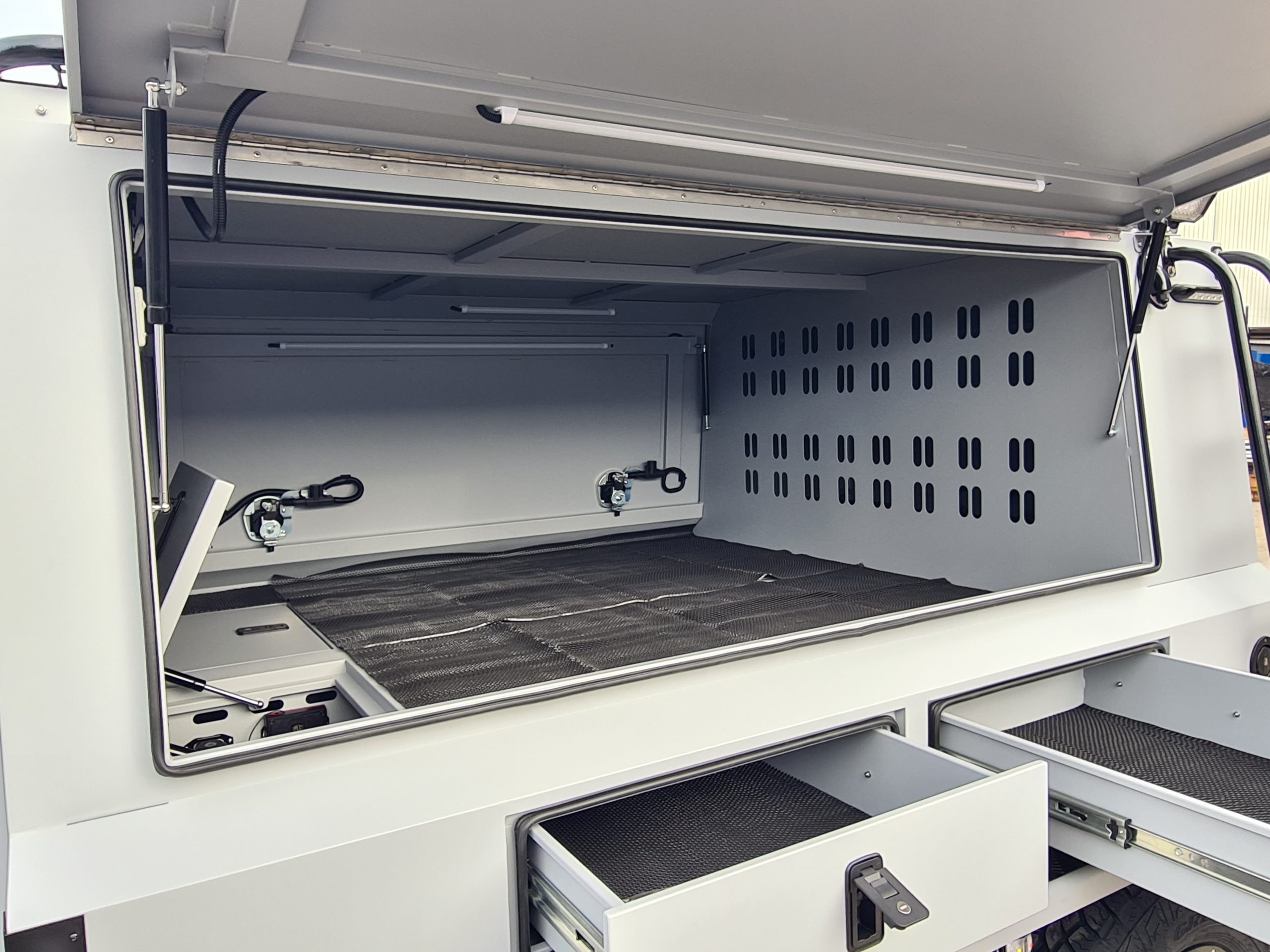

  • The main compartment area on either side is 1700 in width x 1950 length x 820 in depth.

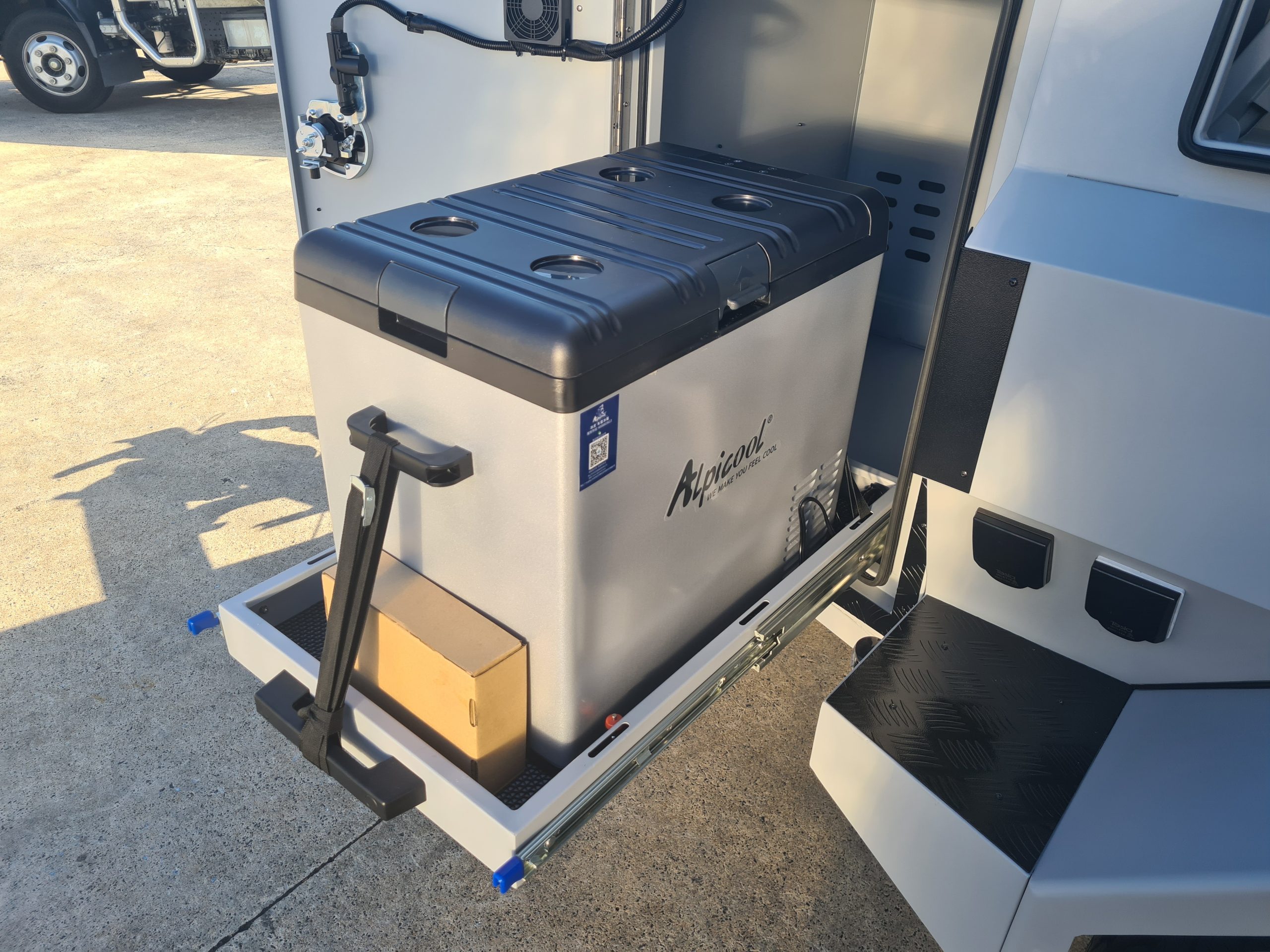

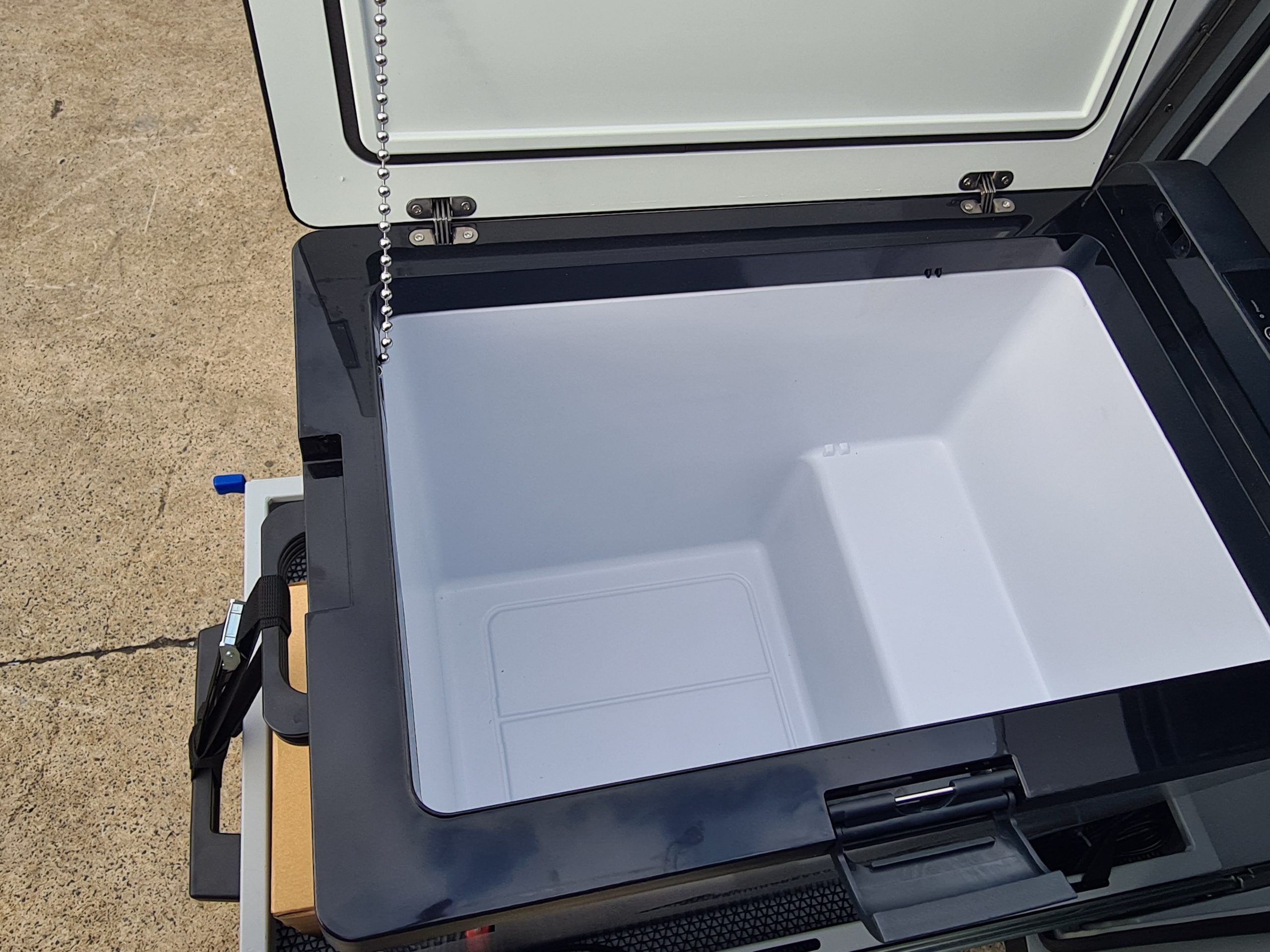

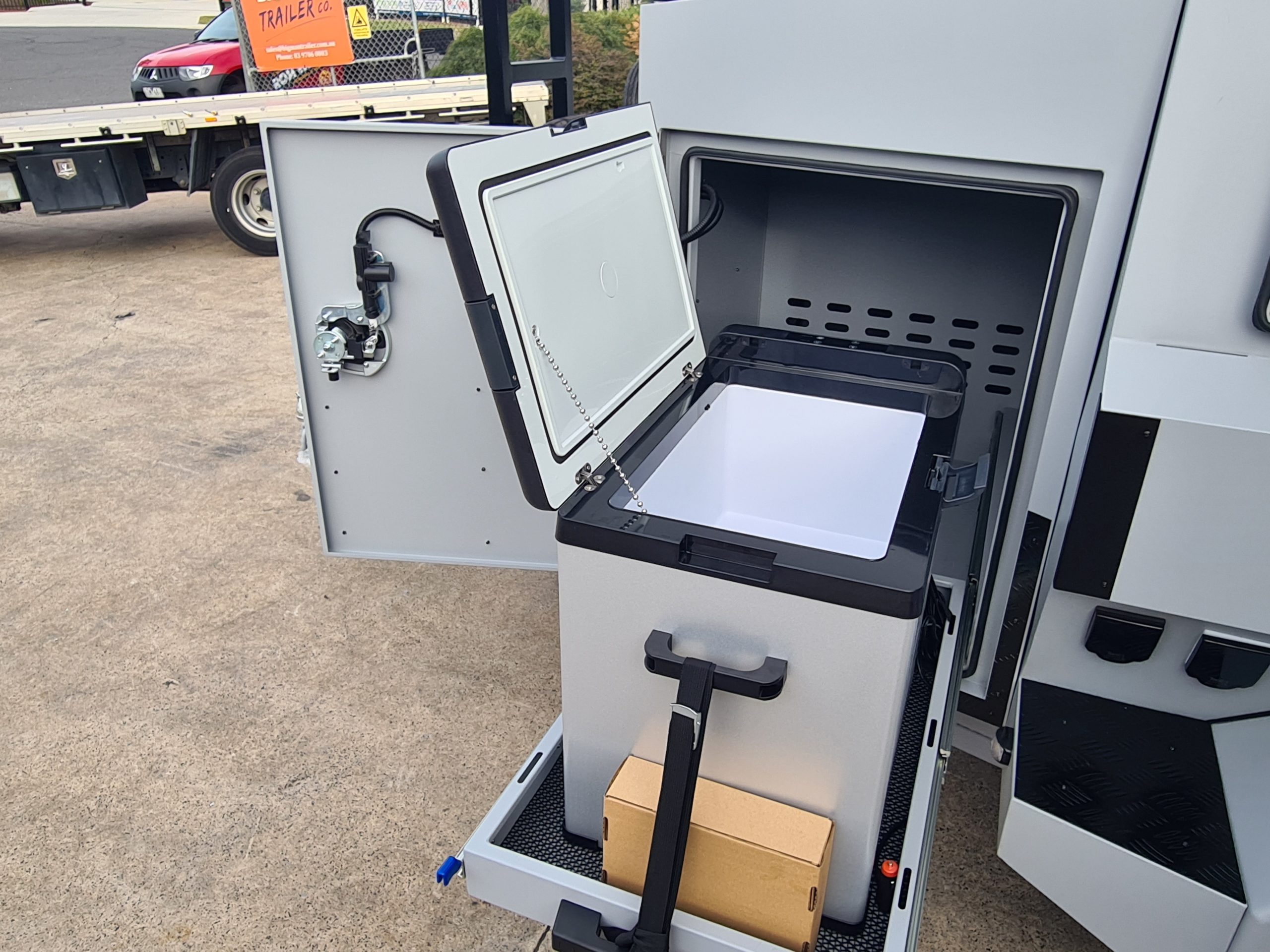

  • Fridge slide out – 50 Litres with Fan.
  • Additional Compartment above the fridge  – 1100 width x 600 length x 200 Depth.

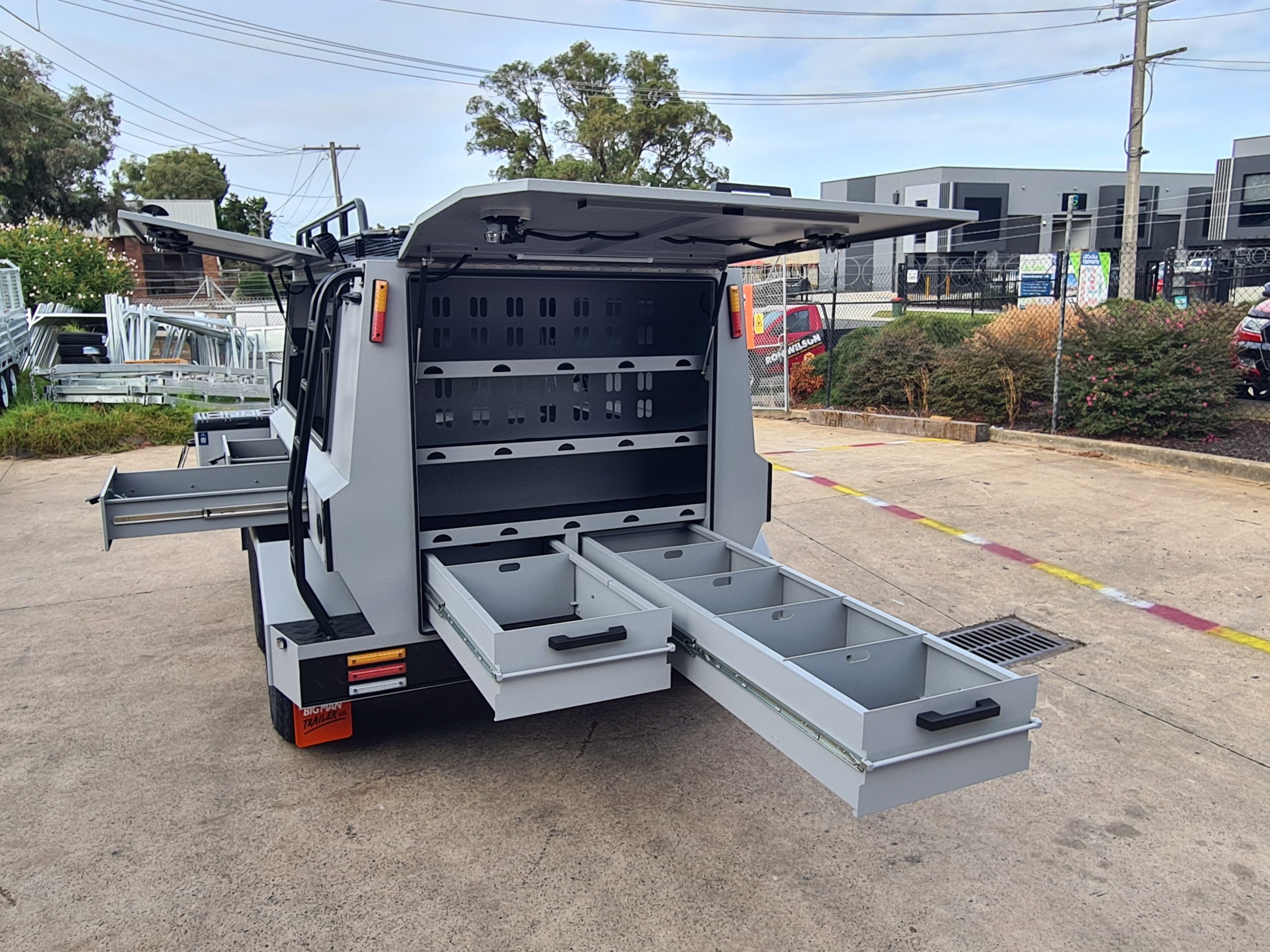

  • 2 x shelves located at the rear:
  • Bottom shelves – 1800 width x 450 length x 420 height.
  • Top shelf – 1500 width x 390 length x 380 height.

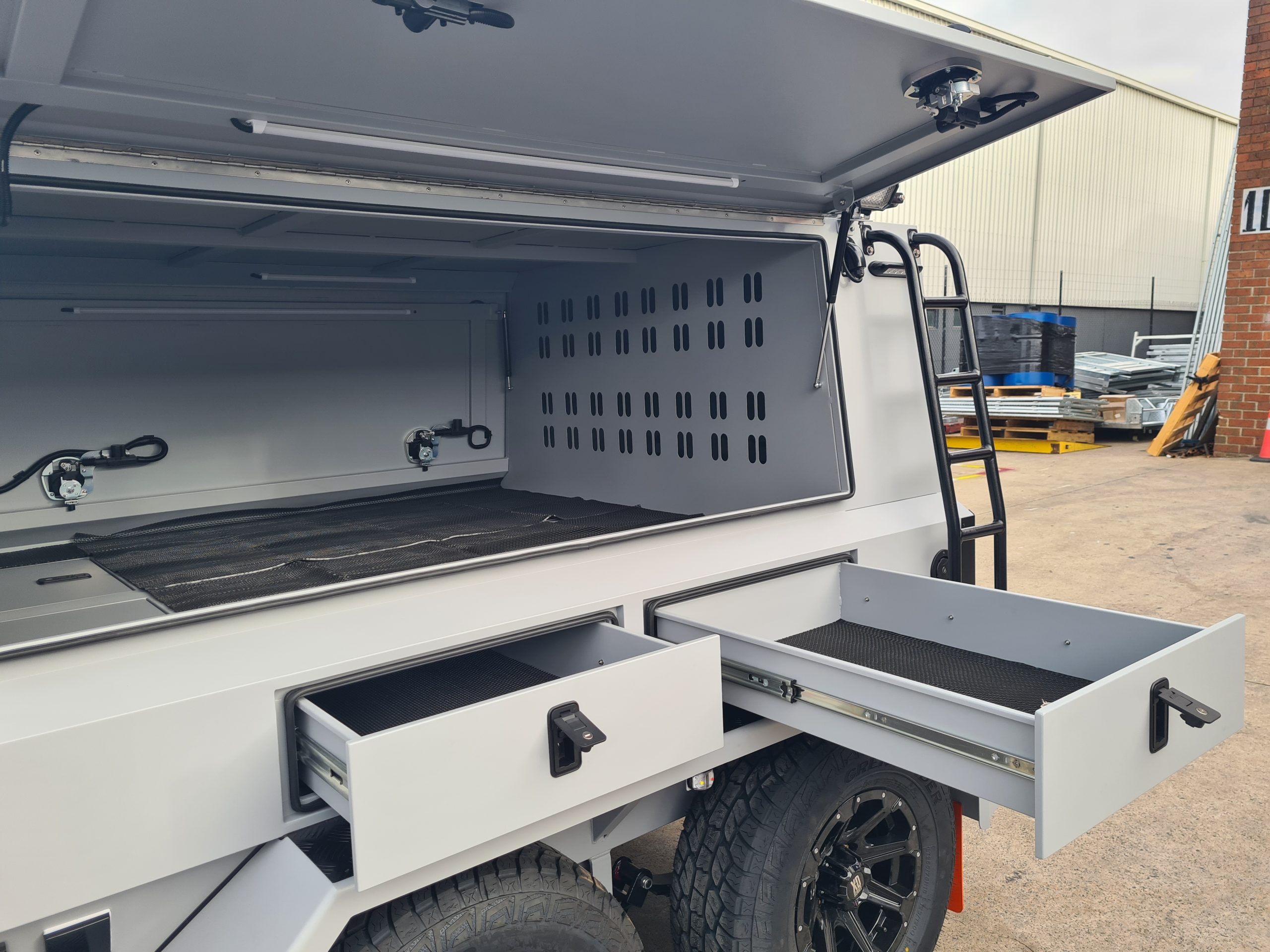

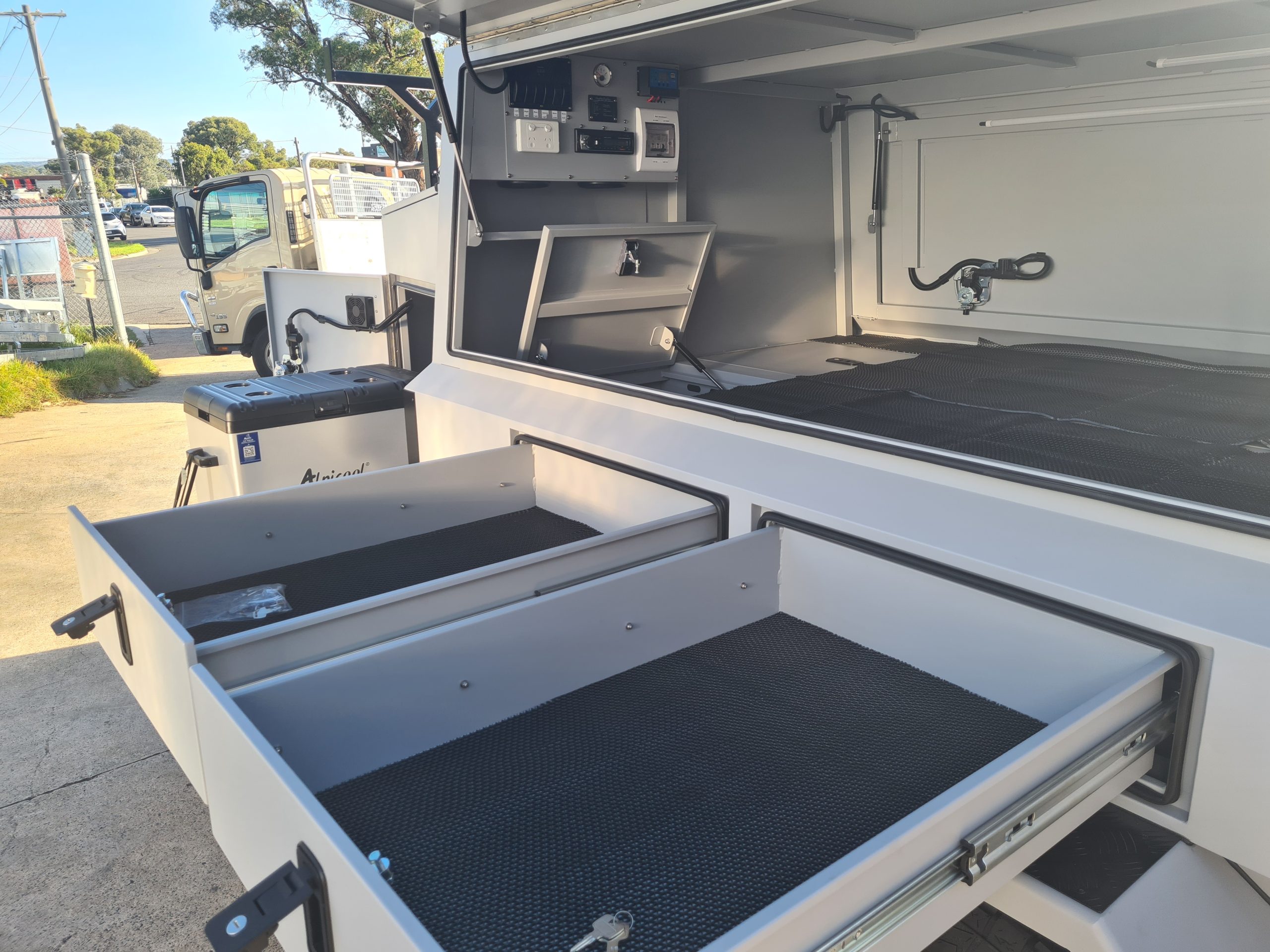

  • 3 x slide-out pull-out drawers located at the rear – 500 width x 1800 length x 400 height.
  • Draws Have Latches on the side to open and close.
  • Additional storage compartments (Right side)
  • Longest point – 450 length x 700 width x 200 height.
  • Lowest point – 340 length x 700 width x 200 height.
  • Additional storage compartments (Left side)
  • Longest point – 450 length x 700 width x 200 height.
  • Lowest point – 340 length x 700 width x 200 height.
  • Internal fans were found in front of the wheel holder behind the fridge.
